We are eager to cooperate with foreign companies which care much on the top-tier quality, stable supply, business reputation. The electronic test and measurement equipment will supply to all over the world, such as East Asia, South Africa, Canada, Western Europe, etc. We make great efforts to achieve this win-win situation, we insist on innovation and integrity, customer first, quality excellent. Owning a factory and top-notch technologies, Smartgiant Technology always offers unmatchable electronic test and measurement equipment worldwide. In recent years, our factory prides itself on a team of integrated advanced technologies, delivering excellence. With our cutting-edge production facilities, we assure the production of high-quality goods, we also accept Customized Products order, we ensure that every product meets the criteria for professional certification. We strongly think that we will do superior and far better. We glance ahead on your pay a visit to and developing trustworthy and long-term standing relationship. We are looking forward to cooperating with you and providing our best services for you, as well as our electronic test and measurement equipment, Nysa Modular Instruments,Test and Measurement Instruments.
Get Test & Measurement Technologies & Solutions!
Specializing in FPGA-based Control, Processing, and Scceleration technologies
Electronic Test And Measurement Equipment Boost Profit – Consider other products?
Nysa Toolkit -Visual Application Software
- Manage plug-in instruments
- Manage standalone instruments
- Manage status of plug-in instrument modules
- Upgrade device firmware
- Virtualize instrument panel

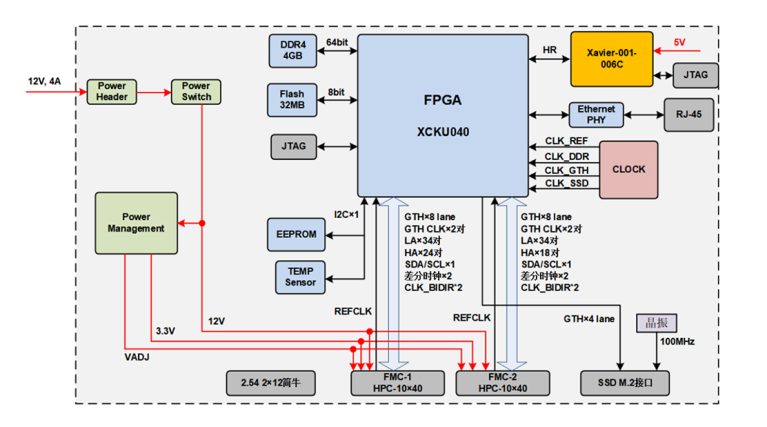

3.75 GHz RF Acquisition and Playback Module
• Main Controller: XCKU040-2FFVA1156I chip form Xilinx UltraScale series
• RF Performance: Supports dual channels, with 2-lane TX channels supporting 10MHz to 6GHz frequency output; 2-lane RX high-speed adjustable data channels offering frequency input from 10MHz to 8GHz
• Extensive Expansion Interfaces: 2 HPC FMC expansion interfaces, 2 Gigabit Ethernet interfaces, 2 JTAG download and debugging interfaces and 1 M.2 socket interface
• ADC Performance: 14-bit resolution, 3 GSPS sampling rate
• DAC Performance: 16-bit resolution, 12.6 GSPS sampling rate
• Customization: offer customization services for the hardware interfaces and functions of the FPGA development board, along with ADC and DAC submodule
MIPI RFFE Controller
- Xilinx Zynq SoM, Arm Cortex-A9
- Provide Ethernet and USB management interfaces
- Support dual-channel MIPI RFFE control interface
- Support UUT power supply, VIO voltage and current monitoring
- Provide one SMA trigger input interface and multiple extended GPIOs
- Support to extend other custom protocol interfaces
Measurement and Control Board
• Industrial design: compliant with IEC standards
• A wide range of I/O resources (44 channels)
• Stable, reliable, and precise AFE signal conditioning
• 24-bit ADC high-resolution measurement performance
• A wide range of communication interfaces: 1*100M Ethernet upstream port (Modbus-TCP) and 8*RS485 downstream ports (Modbus-RTU)
• Supports channel isolation: digital-to-ground isolation
• Supports fault detection
• Customizable hardware interface, channel quantity and dimensions
BMU Tester
• Precision grade 0.01%
• Support DC voltage, current, nA level standby current, resistance and other routine tests
• Support over/under-voltage, over-shoot/discharge temperature, short-circuit and other protection tests
• Communication bus levels are programmable and compatible with a wide range of Gas Gauge ICs
• Support SWD or llC firmware burn-in
• Fast testing speed, supporting up to 24 channels of parallel testing
• Powerful software with friendly user interfaces, which can be uploaded to the MES system and used as a test device in R&D or production
Data Logger (Plug-in)
• Resolution: 32 Bits
• Sampling Rate: 250 kSPS
• Recording dual-channel voltage inputs simultaneously and continuously
• Uploading raw data to the PC in real-time
