We are looking forward to cooperating with you and providing our best services for you, as well as our modular equipment, FPGA Control Modules,Test and Measurement Instruments. We believe in: precision in execution defines our work, focus on customer’ demand is the source of company survival. Your request is our command! For additional parameters and item list details, please contact us to acquire additional information. Owning a factory and top-notch technologies, Smartgiant Technology always offers unmatchable modular equipment worldwide. Our production process upholds the highest standards, we accept and consider all orders with unique specifications, each product has met the standards required for professional certification. Over the past few years, our factory encourages creative thinking and innovative technologies, ensuring high-quality to excellence. We are eager to cooperate with foreign companies which care much on the high standard, budget-friendly prices, strong capability and good service. The modular equipment will supply to all over the world, such as East Asia, South Africa, Canada, Western Europe, etc.
Get Test & Measurement Technologies & Solutions!
Specializing in FPGA-based Control, Processing, and Scceleration technologies
Modular Equipment Boost Profit – Consider other products?
3.75 GHz RF Acquisition and Playback Module
• Main Controller: XCKU040-2FFVA1156I chip form Xilinx UltraScale series
• RF Performance: Supports dual channels, with 2-lane TX channels supporting 10MHz to 6GHz frequency output; 2-lane RX high-speed adjustable data channels offering frequency input from 10MHz to 8GHz
• Extensive Expansion Interfaces: 2 HPC FMC expansion interfaces, 2 Gigabit Ethernet interfaces, 2 JTAG download and debugging interfaces and 1 M.2 socket interface
• ADC Performance: 14-bit resolution, 3 GSPS sampling rate
• DAC Performance: 16-bit resolution, 12.6 GSPS sampling rate
• Customization: offer customization services for the hardware interfaces and functions of the FPGA development board, along with ADC and DAC submodule

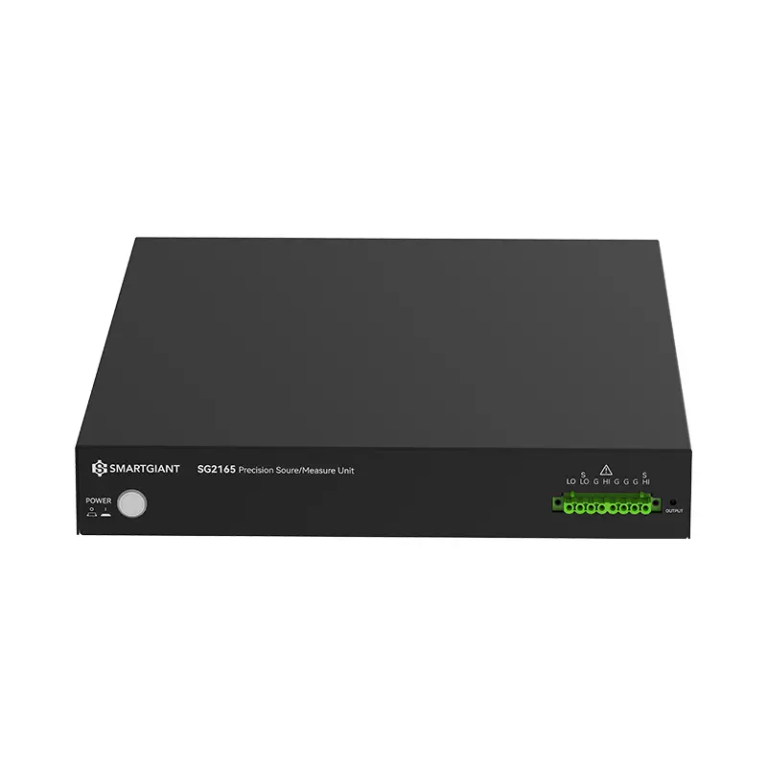

Source-Measurement Unit (SMU)
• Combines the functions of five instruments (digital multimeter, voltage source, current source, electronic load, and pulse generator) into one unit.
• Typical output sources with 0.02% measurement accuracy, supporting both DC and pulse output modes.
• Pulse output mode with a minimum pulse width of 100 us and a rise time of 10 us.
• High-precision source with pA-level resolution and support for multi-channel parallel current expansion.
• Supports 2-wire and 4-wire resistance measurements.
• Compatible with SCPI driver and commands.
High-Speed Data Acquisition Module
- Dual Channel High-Precision Data Acquisition
- FPGA Customization Support
- Dual-Channel High-Precision Sampling
Horus AI High Speed Camera
• Processor: Hi3519AV100
• Image sensor: 1” type, 8.9M pixels CMOS
• Global shutter
• Frame Rate: capable of 50 fps at 4K and 120 fps at 1080P resolution
• Encoding: H.265/H.264
• Time Synchronization: NTP time sync
• Connectivity: low latency and RTSP stream
Vector Network Analyzer
• Host unit equipped with four RF test ports
• Testing dynamic range exceeding 120 dB
• Noise floor as low as -125 dBm/Hz
• User-friendly interface based on the Windows operating system
• Measurement speed of a point better than 70 microseconds
• RF signal testing capability up to 8.5 GHz
• Support comprehensive measurements such as S-parameters, Smith charts, and frequency response
Test Bench
- High-performance processor, adopting ZYNQ-7000 series processor, dual-core ARM Cortex-A9, with main frequency up to 866 MHz.
- High precision multimeter, resistance measurement 0 Ω to 100 MΩ, voltage measurement -60 V to 60 V, current measurement 0 to 3 A.
- Audio analyzer, supporting differential input/output and single ended input/output functions, with a sampling rate of up to 192 kps, and capable of measuring signal amplitude, frequency, THD, THD+N.
- Signal generator, supporting output of sine wave, square wave, triangular wave, up to 1 MHz output.
- Oscilloscope module, supporting ±0.9 Vpp input, up to 5 MHz bandwidth, 125 MHz sampling rate.
- Support multi-channel output power supply, multi-function serial port communication, DO output, button simulation, multi-channel load current switching measurement.
- Internal integrated relay switching matrix, RF switch, up to 18 GHz RF signal switching.
