RV1126 rockchip System On Module
The Rockchip RV1126 System On Module (SOM) is a compact, energy-efficient AI vision platform designed for smart camera and AI-enabled applications. Here are the key features and specifications:
: Quad-core ARM Cortex-A7 running up to 1.5GHz plus a RISC-V MCU @ 400MHz
: 2.0 TOPS, supporting INT8/INT16 AI models for efficient AI inference
: Options of 1GB or 2GB LPDDR4 RAM; some modules support up to 4GB
: Typically 8GB or 16GB eMMC; some SOM versions support up to 128GB
:
2 channels of MIPI CSI supporting RAW data input (one channel supports 4K 30fps)
1 channel 16-bit parallel DVP interface
Supports Sony IMX335, IMX415 and other sensors
:
4K H.264/H.265 encoding and decoding at 30fps
Multi-channel video encode/decode support
14M ISP with multi-frame HDR and noise reduction
:
MIPI DSI up to 1080p @ 60fps
RGB888 interface up to 1080p
: Multiple I2S channels, PDM microphone input, audio output
: Gigabit Ethernet with TSO (TCP Segmentation Offload), USB 2.0 OTG and host, SDIO 3.0 for Wi-Fi/SD cards, CAN, UART, SPI, I2C, GPIO, PWM
: Buildroot Linux with support for AI frameworks (TensorFlow, PyTorch, Caffe, MXNet, DarkNet, ONNX)
: Compact 48mm x 48mm core board with up to 172 pins, 6-layer PCB for scalability
AI-enabled IP cameras, smart doorbells, video intercoms
Industrial vision for quality inspection and defect detection
Smart retail, security, finance, and smart city applications
Embedded AI devices and robotics vision systems
This SOM offers a powerful and flexible development platform for embedded AI camera solutions, combining efficient AI processing, multi-camera support, rich I/O, and video capabilities in a small form factor suitable for various smart vision applications.
If you want, I can also provide typical products or development boards based on this SOM and related SDK/software support.
Owning a factory and top-notch technologies, Smartgiant Technology always offers unmatchable system on module worldwide. Let us cooperate hand in hand to make a good future. For further information, please don’t hesitate to contact with us. Over the last few years, our factory continues to lead the way integrated advanced technologies, ensuring high-quality to excellence. We are committed to improving production quality and efficiency continually for your satisfaction tailoring production according to your needs is fine, we ensure that every product meets the criteria for professional certification. Good quality is factory’ existence, dedication to high-quality is our life, putting you first is our mission.
Get Test & Measurement Technologies & Solutions!
Specializing in FPGA-based Control, Processing, and Scceleration technologies
System On Module Boost Profit – Consider other products?

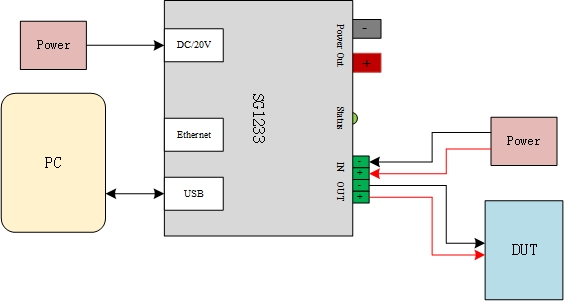

Power Monitor
- 8V-14V adjustable output voltage, maximum continuous output current 8A.
- Real-time collection of voltage, current and power data, which can be displayed graphically through software.
- Support power supply data acquisition of external power supply device for external device power analysis.
- Support using multiple devices simultaneously to enable parallel monitoring.
- Support USB and network communication modes and localized data storage function.
- Capable of power-on self-inspection and multi-faceted protection, including overvoltage, undervoltage, overcurrent and over-temperature protection.
LCR Meter Box
- Supports three testing excitation modes: open-circuit voltage, constant voltage, and constant current.
- Supports dual-mode measurement of LCR (inductance, capacitance.resistance) and DCR (DC resistance)
- The maximum excitation level supported is 1 Vrms with DC bias capability.
- Supports Broadband measurement range from 20 Hz to 2 MHz.
- The basic impedance measurement accuracy is better than 0.1%.
- Up to 19 parameter measurements.
- Measurement speed of up to 5 ms.
E-Load
• Linearly adjustable input current of 0–5 A
• Maximum power of 150 W, meeting the requirements for most custom application scenarios
• Optional operating mode: CC/CV/CR
• Auxiliary modules available (e.g., a PD controller, signal modulator, and barcode scanner)
Source-Measurement Unit (SMU)
• Combines the functions of five instruments (digital multimeter, voltage source, current source, electronic load, and pulse generator) into one unit.
• Typical output sources with 0.02% measurement accuracy, supporting both DC and pulse output modes.
• Pulse output mode with a minimum pulse width of 100 us and a rise time of 10 us.
• High-precision source with pA-level resolution and support for multi-channel parallel current expansion.
• Supports 2-wire and 4-wire resistance measurements.
• Compatible with SCPI driver and commands.
PCIe High-Speed Acquisition Card
- 8-bit two-channel digitizer
- Maximum sampling rate up to 5 GS/s
- Analog bandwidth up to 500 MHz
- PCIe 3.0 x 8 interface
- FPGA based on Xilinx Kintex UltraScale, XCKU040
- Customization for hardware, FPGA and software
Zynq7000 Series
• Powered by: XilinxXC7Z020 / 010 / 007S
• Modular Design: enables flexible integration
• Compact Build: allows seamless embedment
• High Performance: FPGA + ARM + High-speed I/O
• Comprehensive FPGA IP core library
System On Module Cut Down Cost – View Other Pages
Field Programmable Gate Array Market
Field Programmable Gate Array Market Owning a factory and top-notch technologies, Smartgiant Technology always offers unmatchable field programmable gate
Oem/Odm Camera Module
Oem/Odm Camera Module Your support continuously inspires us. We welcome customers all over the world to contact us or
The Benefits of High Accuracy Voltage Measurement: Insights from Smartgiant’s Advanced Technology

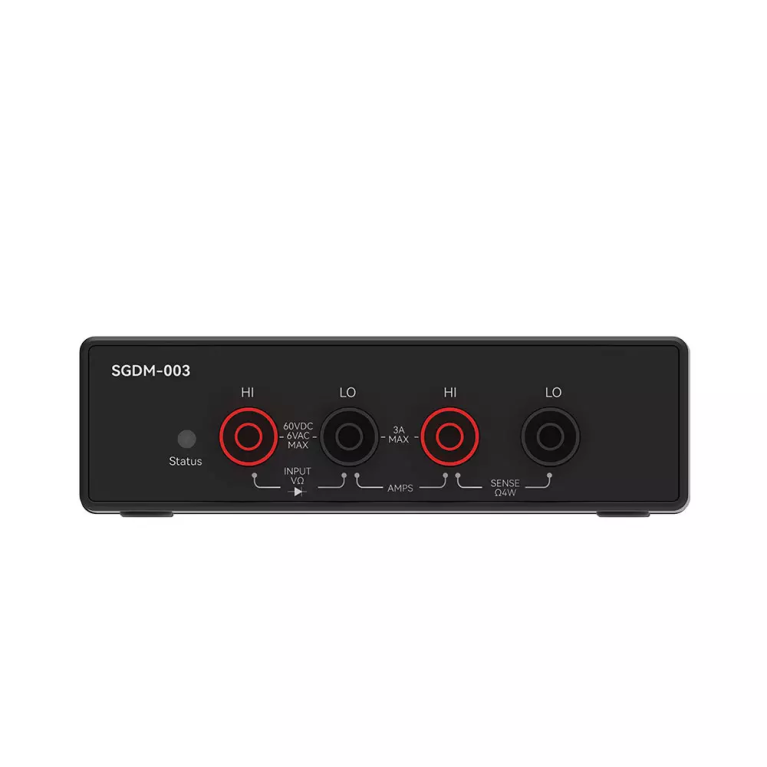

Smartgiant‘s Digital Multimeter (DMM), LCR meter, and Source Measurement Unit (SMU), which are made to provide high accuracy voltage measurement,
