Over the last few years, our factory continues to lead the way integrated advanced technologies, ensuring high-quality to excellence. We sincerely welcome clients from at home and abroad, precision in execution defines our work, customer first, quality excellent. We are looking forward to cooperating with you and providing our best services for you, as well as our Plug-in Modular Instrument Bench, FPGA Control Modules,Test and Measurement Instruments. Owning a factory and top-notch technologies, Smartgiant Technology always offers unmatchable Plug-in Modular Instrument Bench worldwide. The production process is highest standard with a professional quality control, we welcome all custom orders, all products have passed professional certification. We are eager to cooperate with foreign companies which care much on the high standard, reasonable prices, effective capability and superior service. Our Plug-in Modular Instrument Bench will supply to many countries and areas, including East Asia, South Africa, United States, Australia, etc. Give us a chance and we will prove our capability. We glance ahead on your pay a visit to and developing trustworthy and long-term standing relationship.
Get Test & Measurement Technologies & Solutions!
Specializing in FPGA-based Control, Processing, and Scceleration technologies
Plug-In Modular Instrument Bench Boost Profit – Consider other products?
MIPI Tester
• Supports testing of a single camera module
• Compatible with both C-PHY and D-PHY
• MIPI rates up to C-PHY 5 Gbps/trio and D-PHY 2.5 Gbps/lane
• Provides the necessary power, clock, and bus control configuration interfaces for the tested camera module
E-Load
• Linearly adjustable input current of 0–5 A
• Maximum power of 150 W, meeting the requirements for most custom application scenarios
• Optional operating mode: CC/CV/CR
• Auxiliary modules available (e.g., a PD controller, signal modulator, and barcode scanner)
Test Bench
- High-performance processor, adopting ZYNQ-7000 series processor, dual-core ARM Cortex-A9, with main frequency up to 866 MHz.
- High precision multimeter, resistance measurement 0 Ω to 100 MΩ, voltage measurement -60 V to 60 V, current measurement 0 to 3 A.
- Audio analyzer, supporting differential input/output and single ended input/output functions, with a sampling rate of up to 192 kps, and capable of measuring signal amplitude, frequency, THD, THD+N.
- Signal generator, supporting output of sine wave, square wave, triangular wave, up to 1 MHz output.
- Oscilloscope module, supporting ±0.9 Vpp input, up to 5 MHz bandwidth, 125 MHz sampling rate.
- Support multi-channel output power supply, multi-function serial port communication, DO output, button simulation, multi-channel load current switching measurement.
- Internal integrated relay switching matrix, RF switch, up to 18 GHz RF signal switching.
Zynq7000 Series
• Powered by: XilinxXC7Z020 / 010 / 007S
• Modular Design: enables flexible integration
• Compact Build: allows seamless embedment
• High Performance: FPGA + ARM + High-speed I/O
• Comprehensive FPGA IP core library
Source-Measurement Unit (SMU)
• Combines the functions of five instruments (digital multimeter, voltage source, current source, electronic load, and pulse generator) into one unit.
• Typical output sources with 0.02% measurement accuracy, supporting both DC and pulse output modes.
• Pulse output mode with a minimum pulse width of 100 us and a rise time of 10 us.
• High-precision source with pA-level resolution and support for multi-channel parallel current expansion.
• Supports 2-wire and 4-wire resistance measurements.
• Compatible with SCPI driver and commands.
BMU Tester
• Precision grade 0.01%
• Support DC voltage, current, nA level standby current, resistance and other routine tests
• Support over/under-voltage, over-shoot/discharge temperature, short-circuit and other protection tests
• Communication bus levels are programmable and compatible with a wide range of Gas Gauge ICs
• Support SWD or llC firmware burn-in
• Fast testing speed, supporting up to 24 channels of parallel testing
• Powerful software with friendly user interfaces, which can be uploaded to the MES system and used as a test device in R&D or production
Plug-In Modular Instrument Bench Cut Down Cost – View Other Pages
The Role of a Xilinx Industrial Vision Healthcare & Sciences Marketing Operations Manager at Smartgiant
Smartgiant‘s goal at Smartgiant is to advance technology in a variety of fields, such as industrial vision and healthcare and

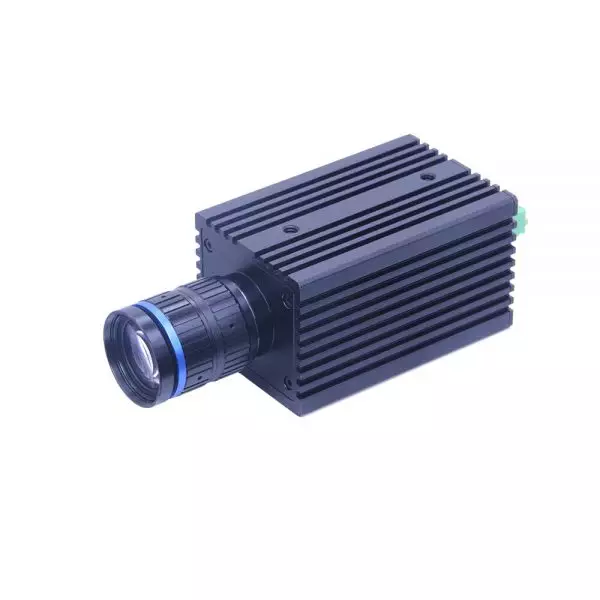

Hardware Ai Camera
