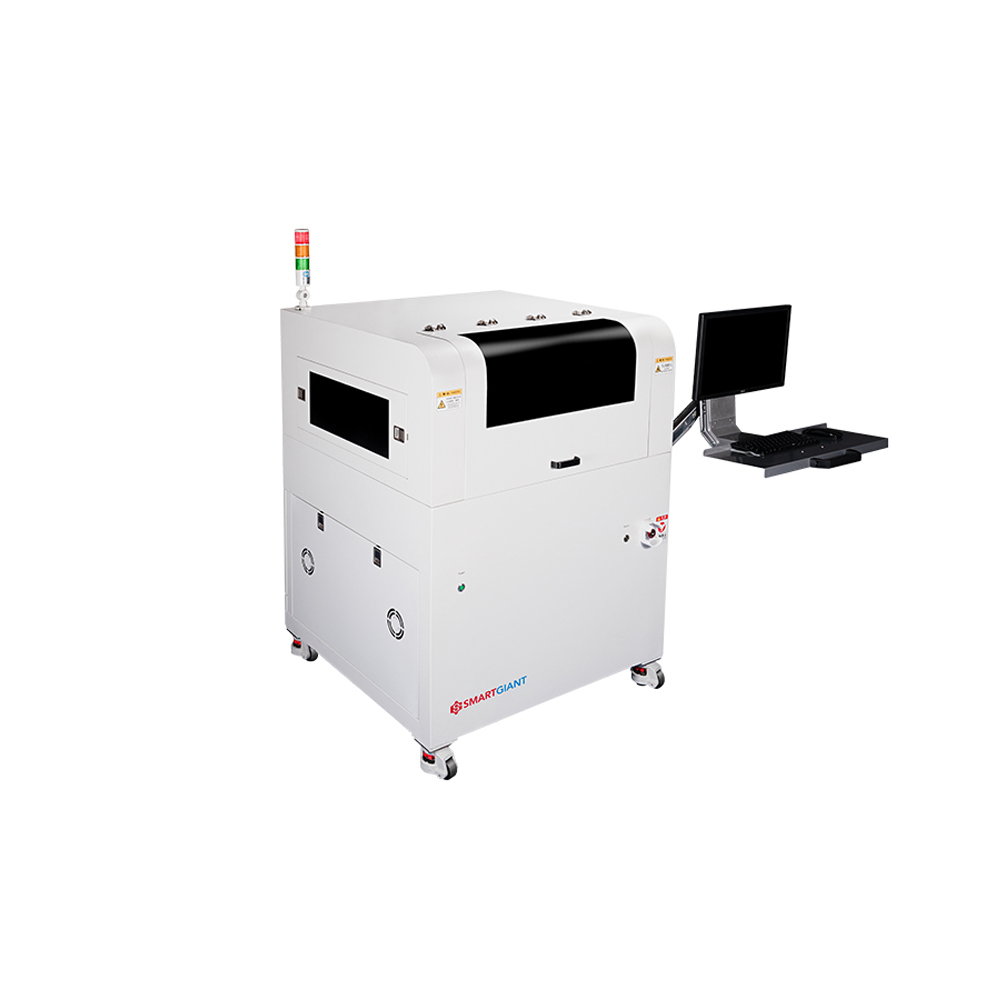

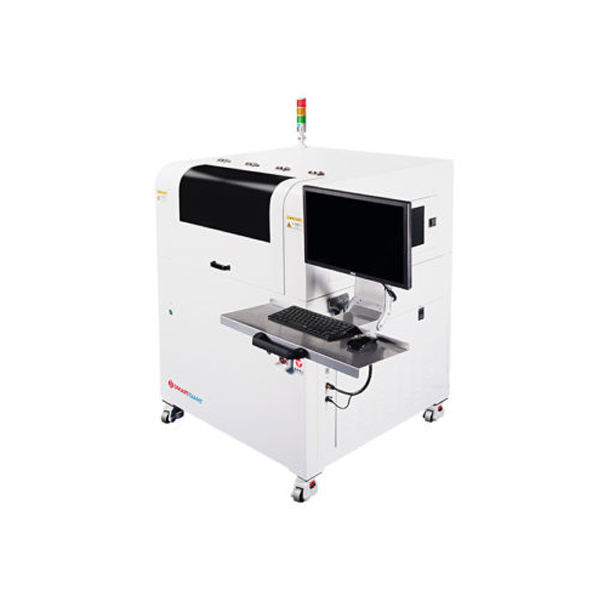

PCB Probe Inspector
• High accuracy: Adopting a high-precision linear motor module, the equipment achieves positioning accuracy of up to ±5 um of on the X and Y axes.
• FCT/ICT Test
• PCB AOI Inspection
Overview
The SG3000 visual inspection equipment is designed to import coordinate data files in a specific format, accurately locate designated points for inspection, and automatically identify and compute the coordinates, shapes, sizes and other data of feature graphics in the product, and analyze the data to determine whether the product meets the design requirements.
Application Scenarios
• FCT (Functional Circuit Test) and ICT (In-Circuit Test)
• PCB AOI Inspection
Specifications
| Dimensions (L x W x H) | 1473 x 1540 x 1755 mm |
| Weight | 650 kg |
| Power Supply | 220 VAC ± 5%, 50 Hz |
| Power Consumption | 1800 W |
| Detection Speed | 0.65s per point |
| Detection Accuracy | 5 μm |
| Drive Mode | Linear Servo Motor (2-DOF) + Optical Linear Encoder |
| Drive Speed | ≤ 1000 mm/s |
| Drive Acceleration | ≤ 2000 mm/s² |
| Camera Resolution | 2592 x 1944, 5M |
| Telecentric Lens | 0.5x magnification |
| Maximum PCB Size | 440 x 440 mm |
| IPC | Intel® Core™ i5-3450 Processor 8G DDR3, 240G SSD, B75, Win7 |
| Mac mini (optional) | Intel® Core™ i5 Processor 8G DDR3, 256G SSD, macOS |
| Trigger Mode | Software Trigger |
| Result Output | PDF/CSV/JPG |
