Features

• Desktop design for space saving
• Modular development for easier expansion
• Customized development of the host computer, enabling richer data display, more user-friendly interface, and more convenient interaction
• Stable, reliable, and precise AFE signal conditioning
• Up to 32-bit ADC (Analog-to-Digital Converter)
• Digital signal processing on multiple platforms such as MCU, ARM, FPGA, DSP, and GPU
• Multi-dimensional surface fitting and calibration

Technical Capabilities

Multidisciplinary & Multi-platform Customized Development in Analog & Digital Mixed Signals

• Stable, reliable, and precise AFE signal conditioning
• Up to 32-bit ADC (Analog-to-Digital Converter)
• Digital signal processing on multiple platforms such as MCU, ARM, FPGA, DSP, and GPU
• Multi-dimensional surface fitting and calibration

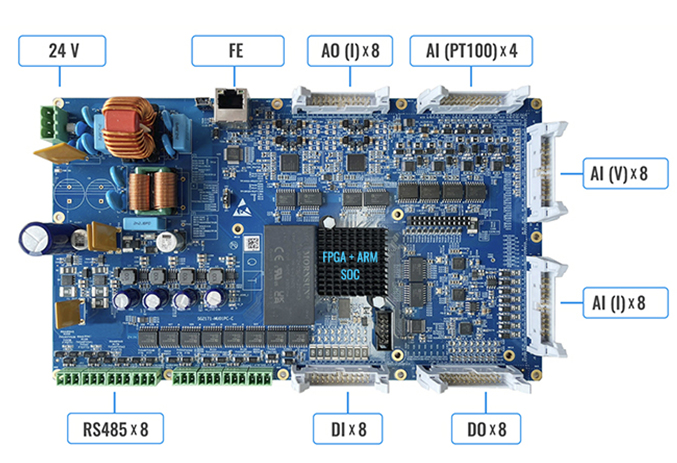

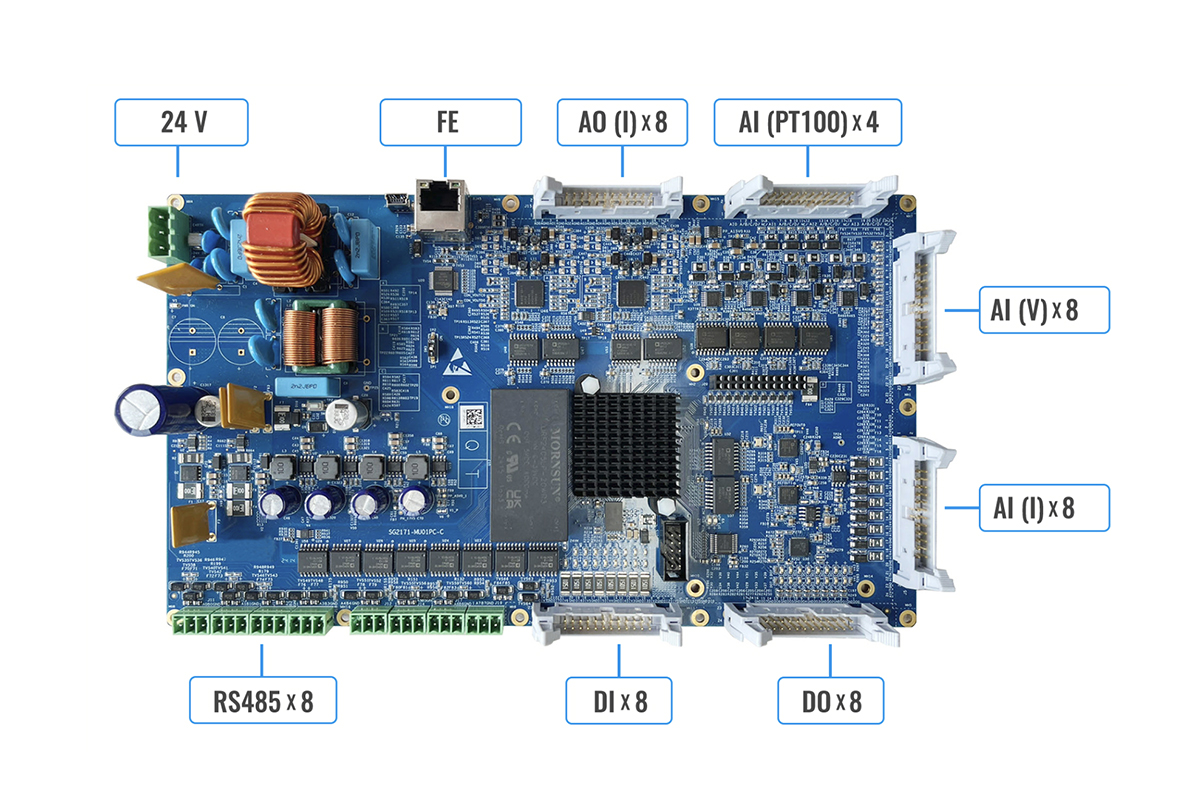

Design Applications-Customized Measurement & Control Board

• Industrial design: compliant with IEC standards
• Extensive I/O resources (44 channels)
• A wide range of communication interfaces: 1*100 M Ethernet upstream port (Modbus-TCP) and 8*RS485 downstream ports (Modbus-RTU)
• Support channel isolation: digital-to-ground isolation
• Customizable hardware interfaces, channel numbers, and dimensions

HMI

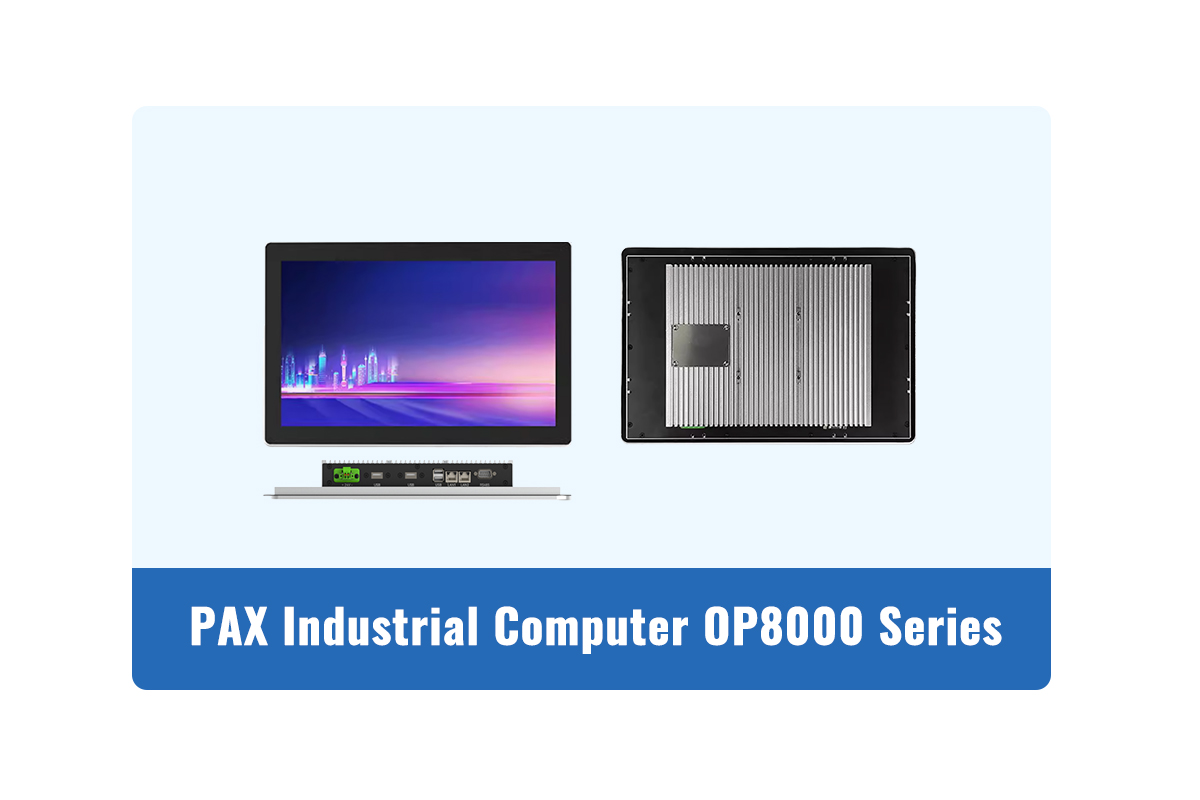

PAX Industrial Computer

• Optional computer configurations
• Capacitive touch screen with 1920×1080 resolution
• Optional Wi-Fi and Bluetooth capabilities
• Fanless cooling with screw-type Phoenix terminal power connector for enabling system stability and reliability
• Micro-customizable interfaces, installation methods, and screen sizes

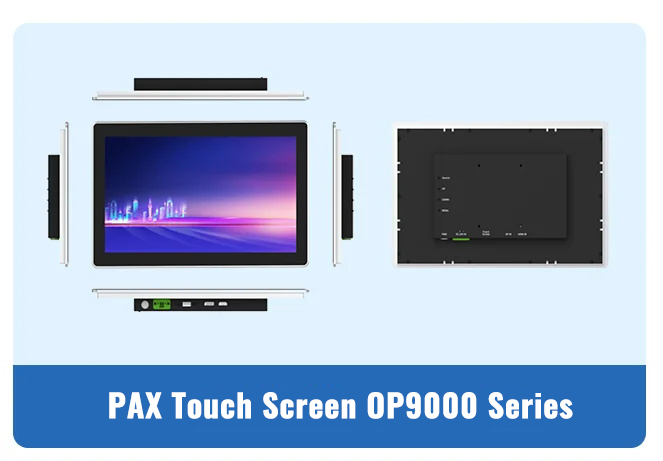

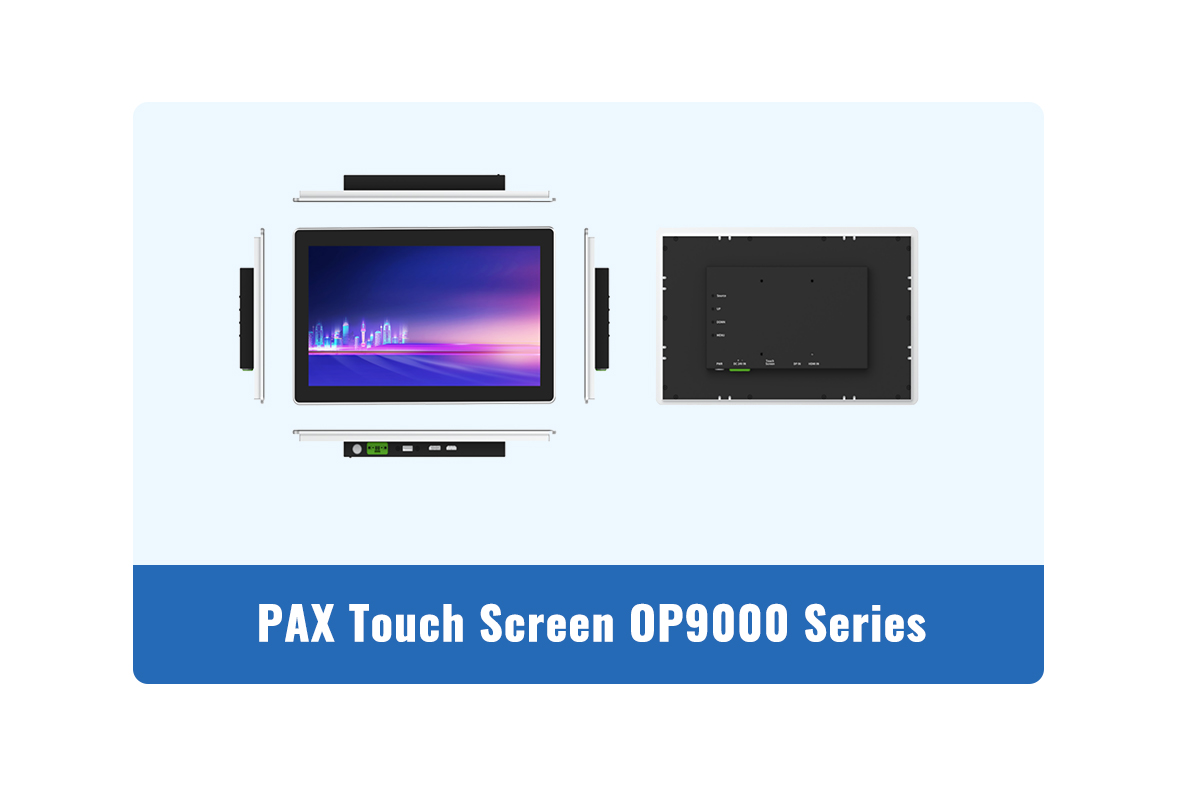

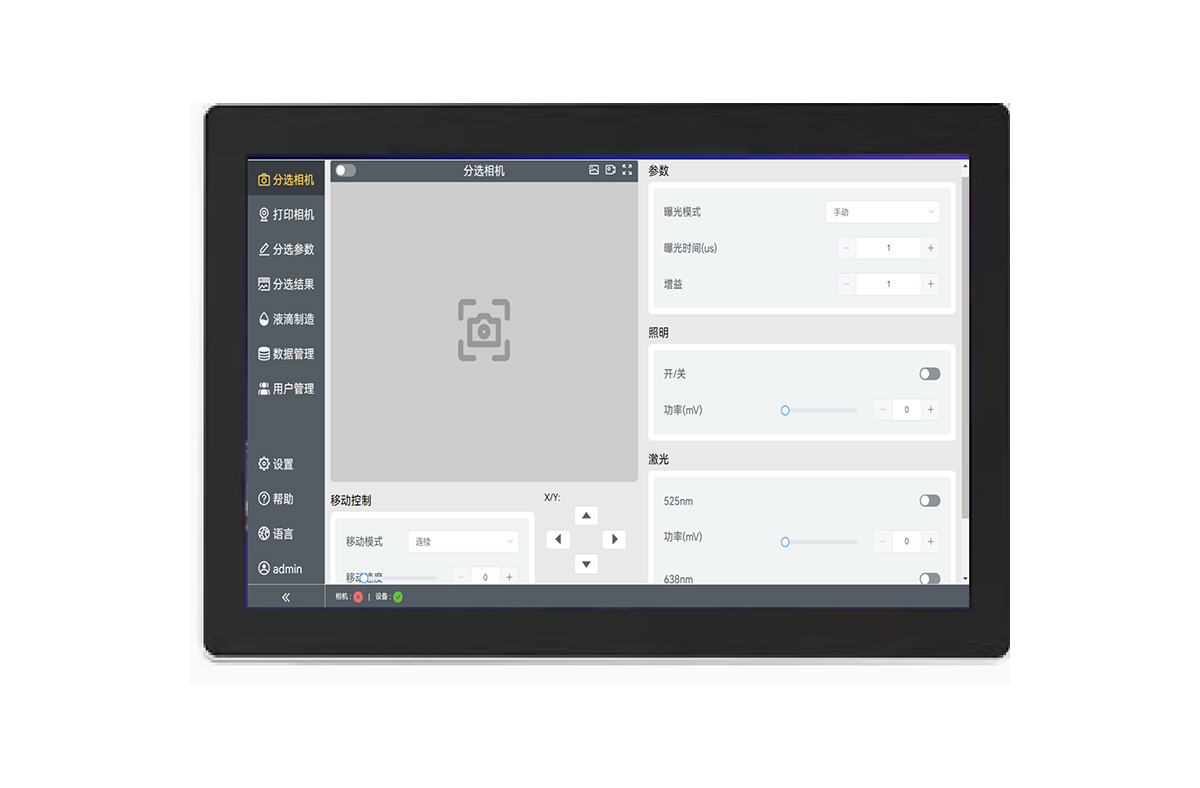

PAX Touch Screen

• 10-point capacitive touch screen, offering enhanced accuracy and faster response
• 1920×1080 resolution
• Compatible with DP 1.2 & HDMI 1.4
• Customizable screen size and mounting options

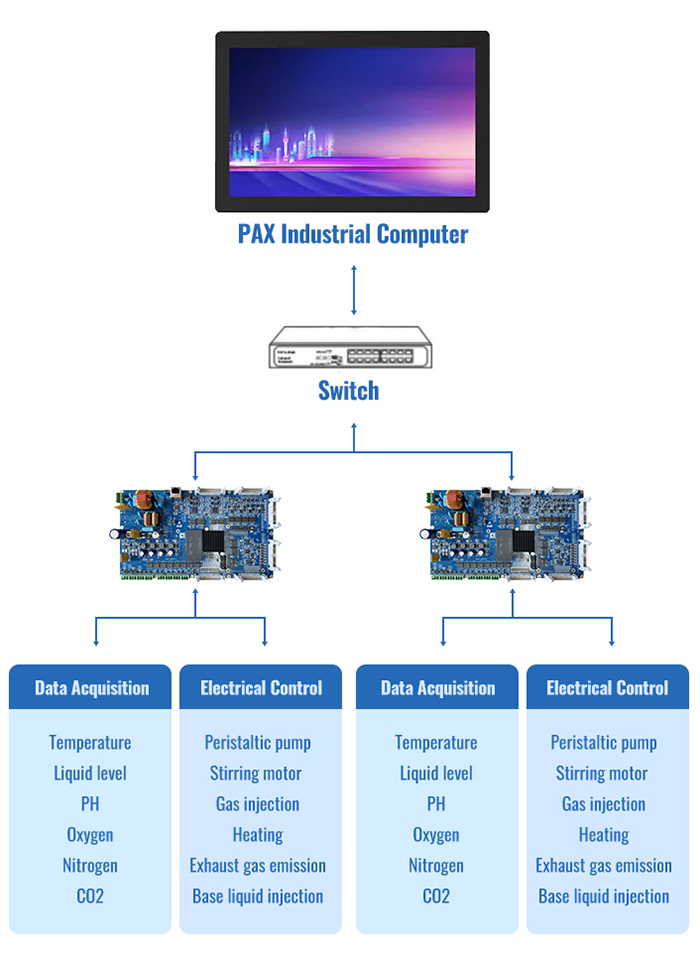

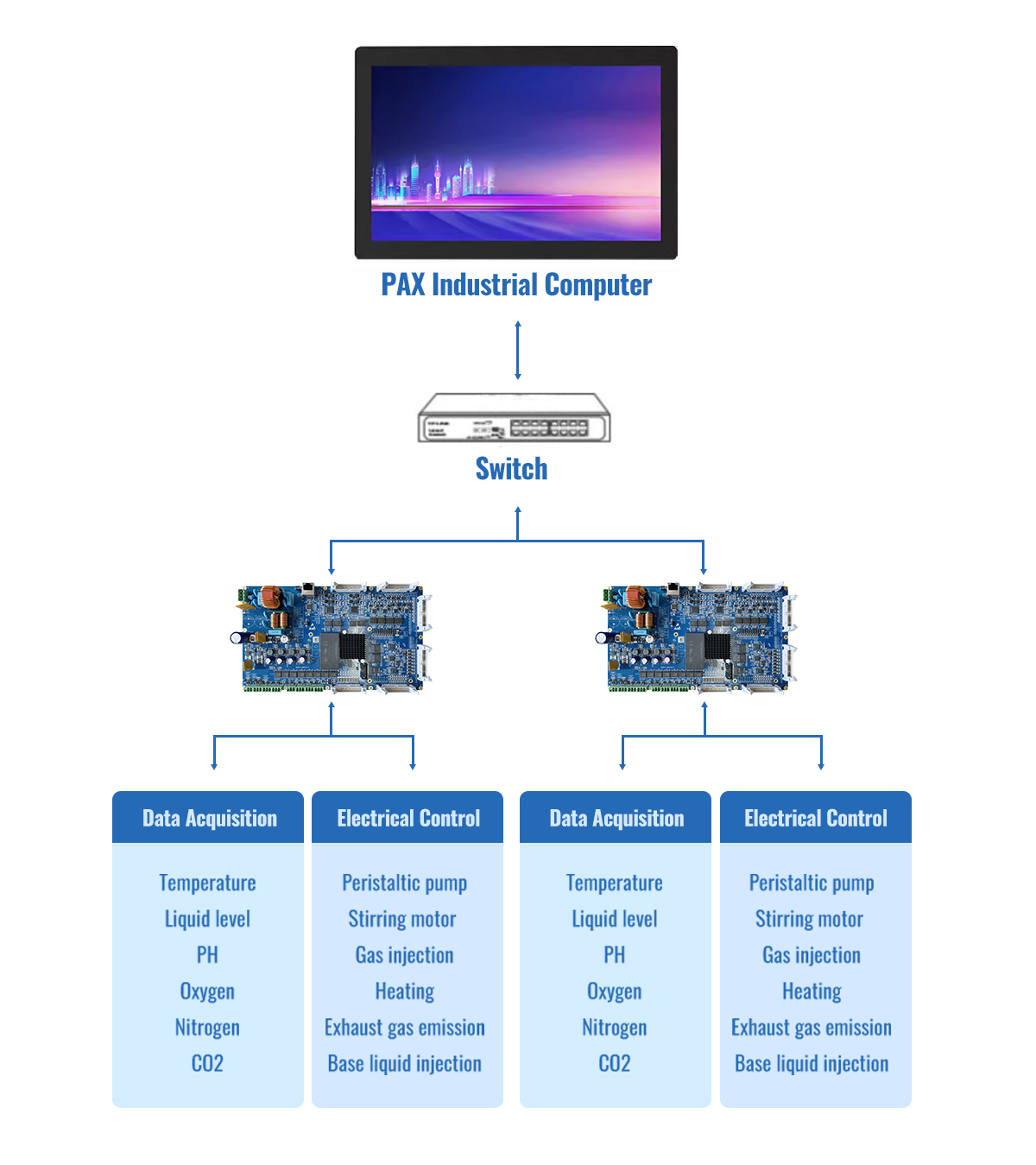

拓扑关系

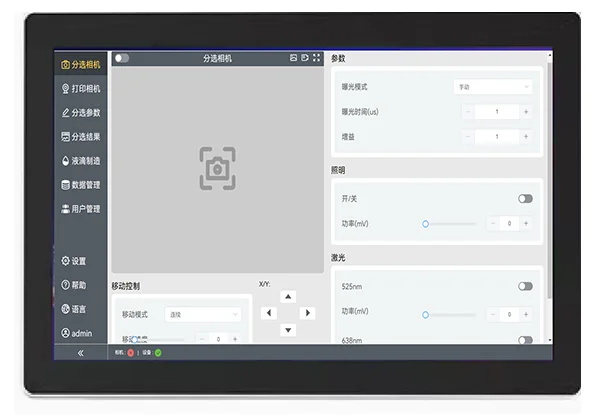

上位机软件

• Development of multi-level management permissions
• Data collection range settings
• Data collection threshold settings and alarms
• Data collection waveform curve settings
• Data collection and storage
• Time control for electrical sub-devices
• Timer control for electrical sub-devices
• Overall equipment control logic design (needs to match the customer’s process flow)
• Automation execution of process recipe
• Alarm mechanism design
• Formatting and saving process recipe test data
• Test log storage
• Equipment operation log storage

Service Items

• Control system development
• Upper computer software development
• Mechanical structure development
• Productization process development
• Shipment QC process development
• Production and assembly

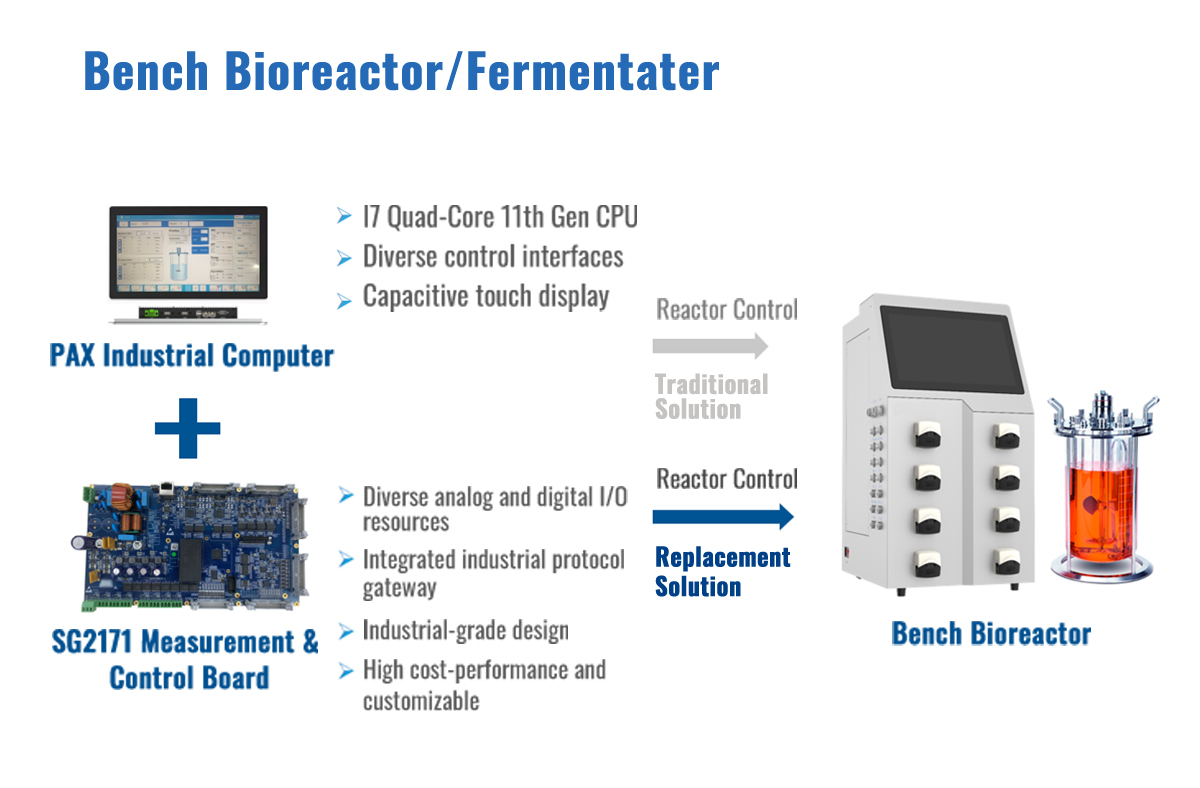

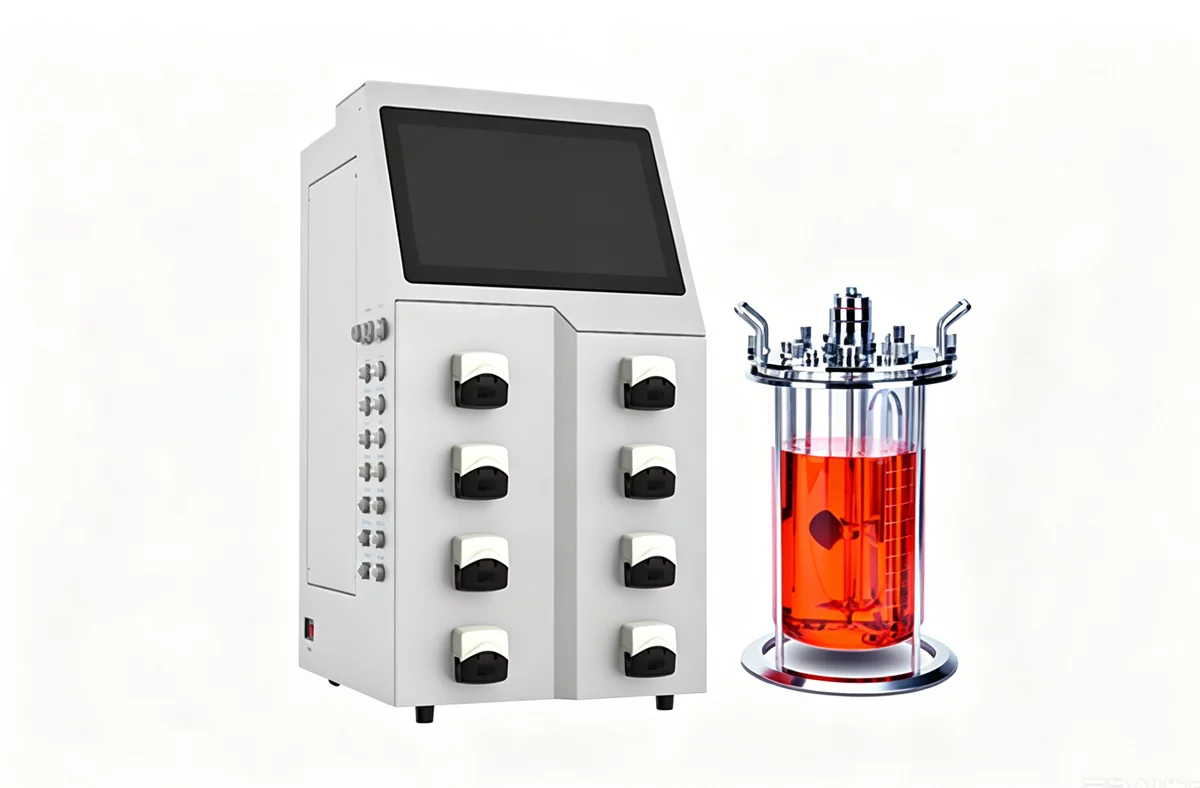

Customized Application Case

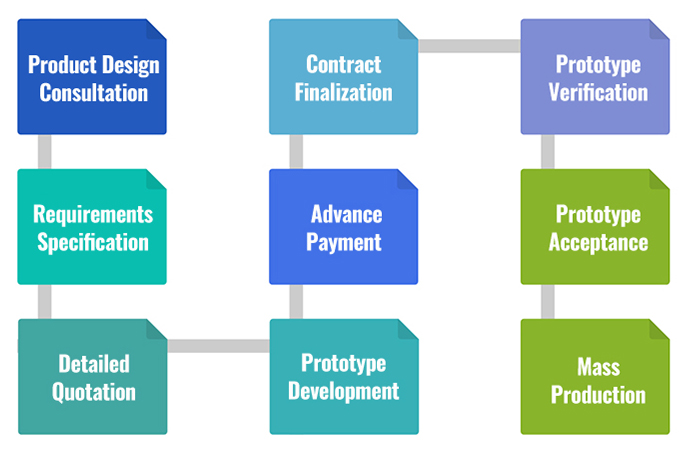

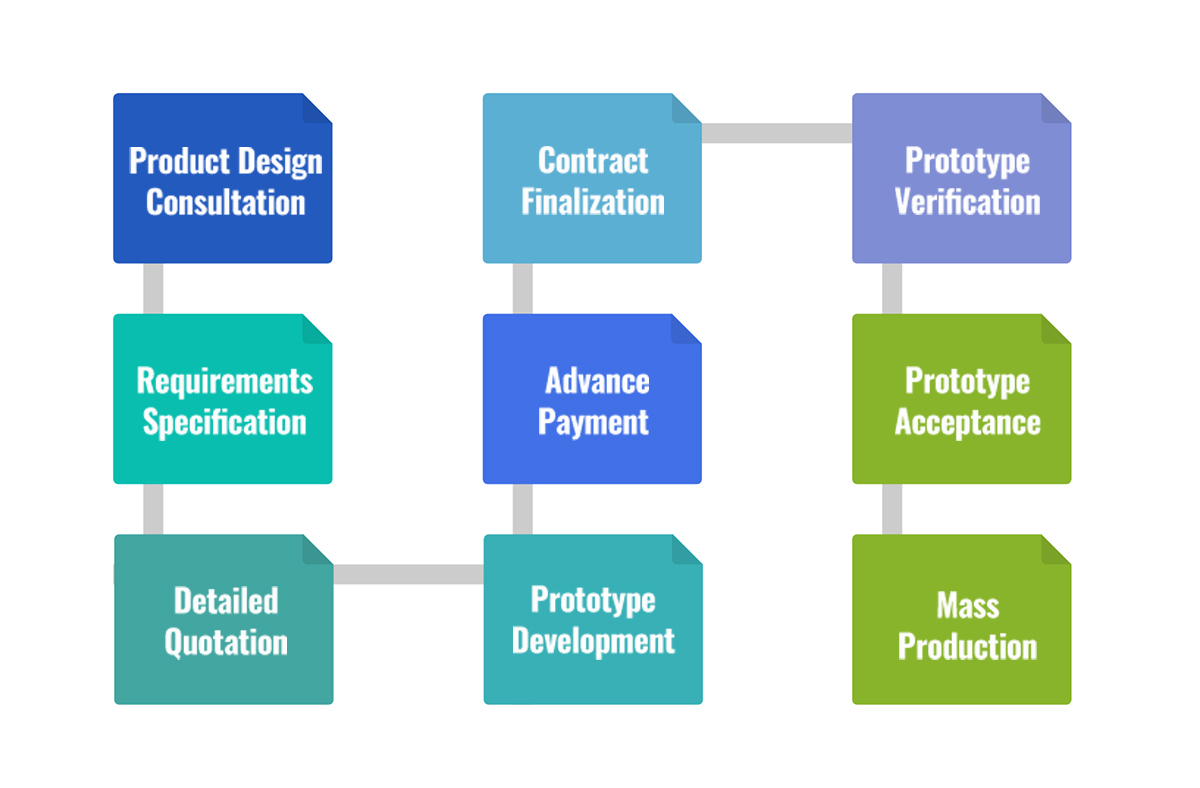

Customization Process
