Our industrial barcode scanner is engineered to capture barcodes, QR codes, and compact Data Matrix codes on various types of product surfaces.

Overview

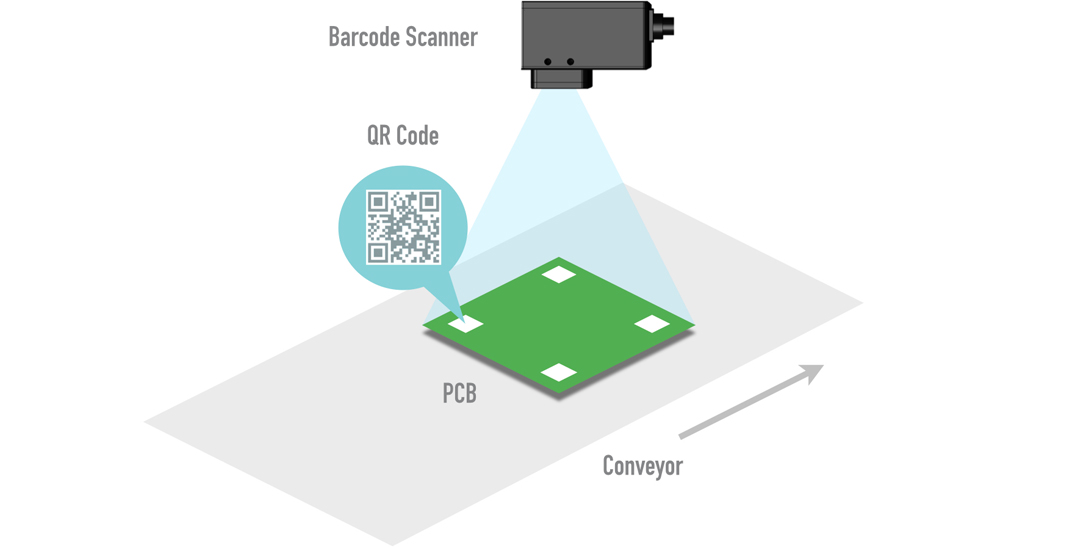

Our industrial barcode scanner is engineered to capture barcodes, QR codes, and compact Data Matrix codes on various types of product surfaces. Our AI algorithm optimizes the reading of DPM (direct part marking) codes and laser-engraved codes. Even poorly printed or severely damaged images can be read after careful calibration. With a compact and lightweight design, the scanner can be easily embedded onto/into automated testing fixtures within limited spaces.

Auto focus, a global shutter for capturing images on the move, and PC-free decoding features are available for diverse application scenarios. The ability to cascade up to 8 scanners using edge computers allows for simultaneous decoding and data uploading, supporting the development of comprehensive traceability management and quality tracking systems in a smart factory environment.

Technical Specifications:

• Camera Resolution: 2592 × 1944 (rolling shutter), 1280 × 800 (global shutter)
• Decoding Speed: 0.6–2.8 seconds per scan
• Barcode Type: Barcode (1D), QR Code (2D), and Data Matrix codes
• Barcode Techniques: printed codes, DPM (Direct Part Marking), laser engraving
• Barcode Density: ≥ 1 mil
• Calibration: ultra-low contrast, ultra-deep colors, severely damaged codes
• Operating Systems Windows, Linux, and macOS

Typical Uses

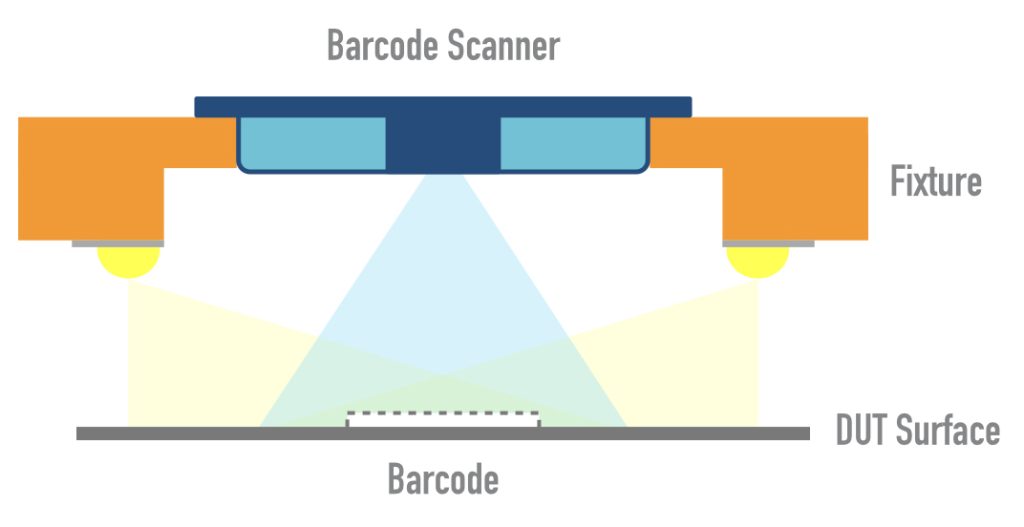

AI Macro – AS1001/1100

• Working Distance: 18–50 mm
• Extra Performance: auto focus
• Decoder: PC decoder (via USB)
• Result Output: virtual serial port, WebSocket, and virtual keyboard

AI Telephoto – AS1000

• Working Distance: 50–1000 mm
• Extra Performance: global shutter
• Decoder: built-in decoder (PC-Free)
• Result Output: USB port (PC-Free)

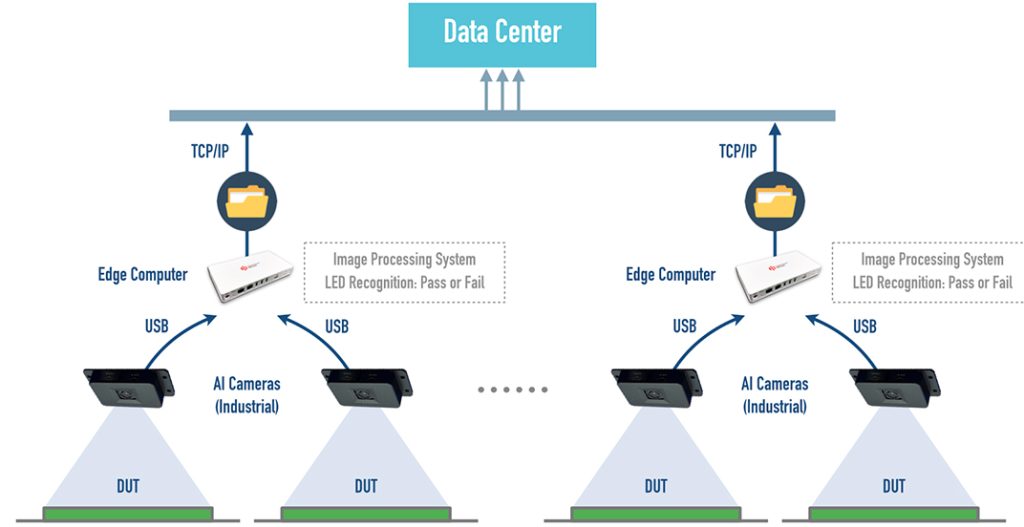

Edge Computer + AI Cameras – AS1101-X

• Working Distance: 18–50 mm
• Extra Performance: edge computing, parallel decoding, real-time data processing, device management, log generation
• Decoder: PC decoder (via USB)
• Result Output: LAN port of the edge computer
